• 6-speaker audio system
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars

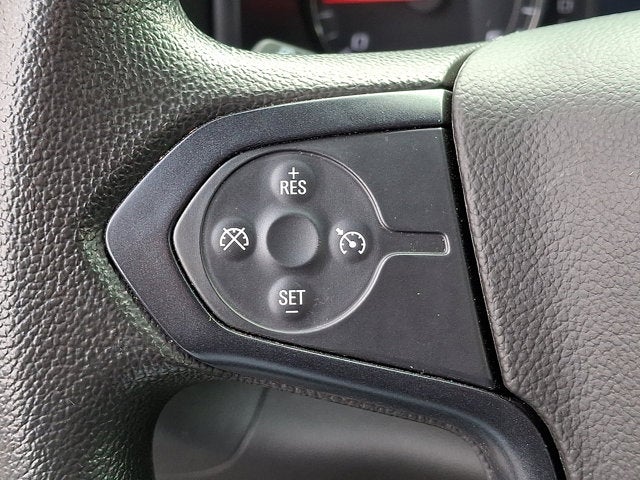

• Cruise control, steering wheel-mounted
• Door locks, power
• Floor covering, Graphite-colored rubberized-vinyl
• Mirror, inside rearview manual day/night
• Seat trim, Vinyl

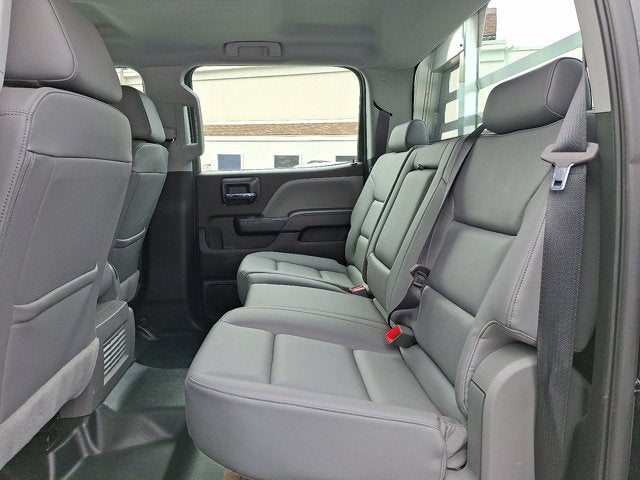

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)

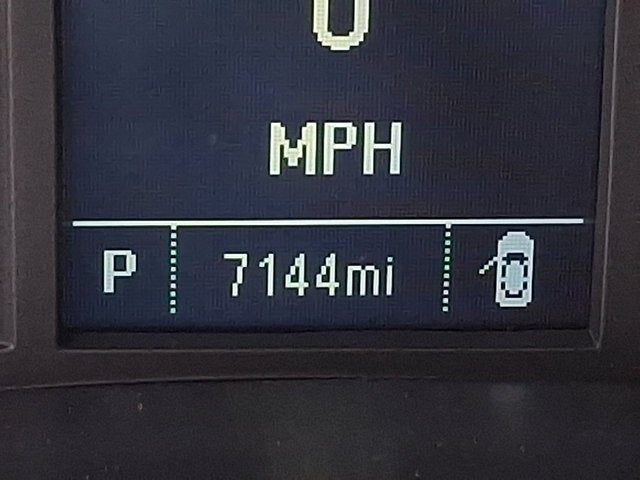

• Speedometer, miles/kilometers

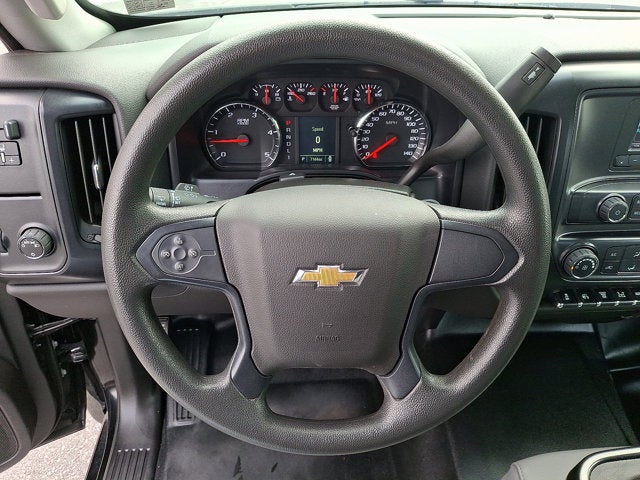

• Steering column, manual Tilt-Wheel
• Steering wheel, urethane
• Visors, driver and front passenger, vinyl

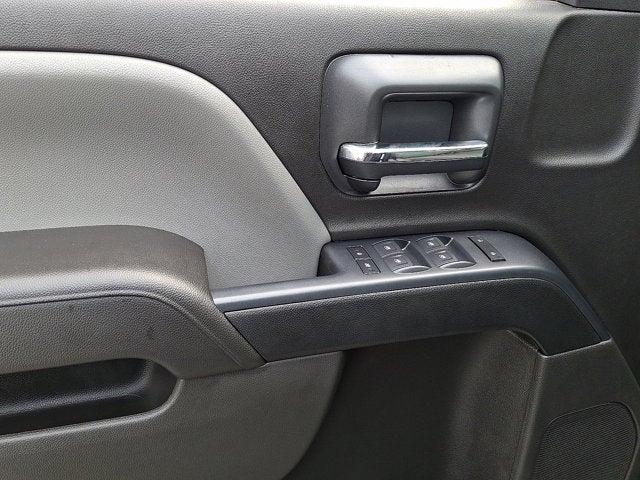

• Windows, power with driver express up and down and express down on all other windows

• Alternator, 150 amps
• Capped Fuel Fill
• Fuel, diesel B20
• Rear wheel drive
• Trailer brake controller, integrated

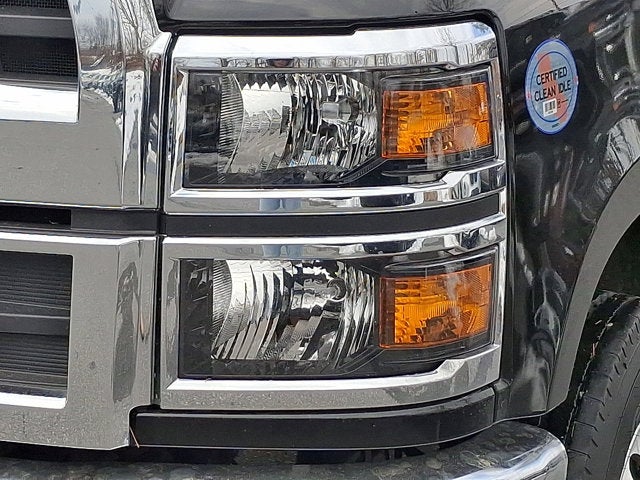

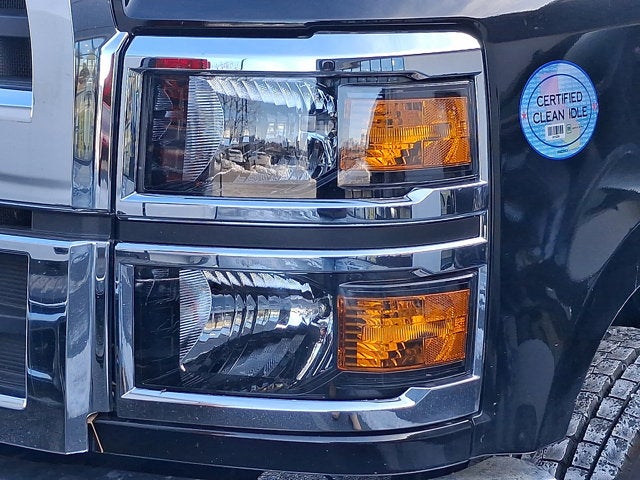

• Daytime Running Lamps, with automatic exterior lamp control
• Horn, single-note
• OnStar, delete
• Traction control

BACKUP ALARM

• (Includes (SFW) SEO Calibration for backup alarm.

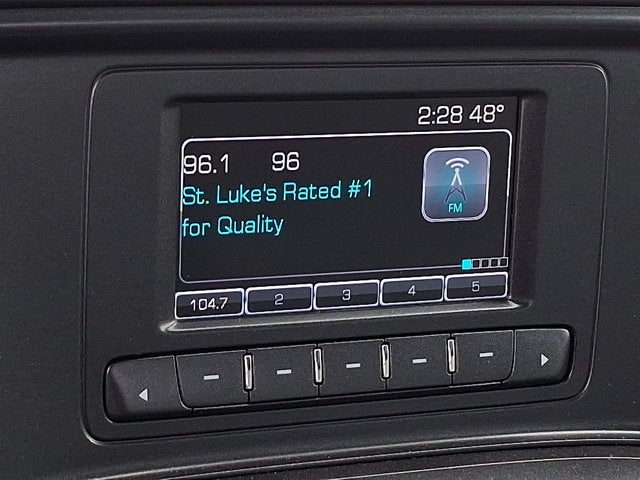

AUDIO SYSTEM, 4.2" DIAGONAL COLOR DISPLAY

• AM/FM stereo with USB port and auxiliary jack (STD)

TIRES, REAR 225/70R19.5G TRACTION BLACKWALL GOODYEAR

• Max Axle Load: 15
• 000 lb.

POWER TAKE OFF, ENGINE CONTROL PROVISIONS

• Access is available on left-hand and right-hand side

BACK-UP ALARM CALIBRATION

• This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

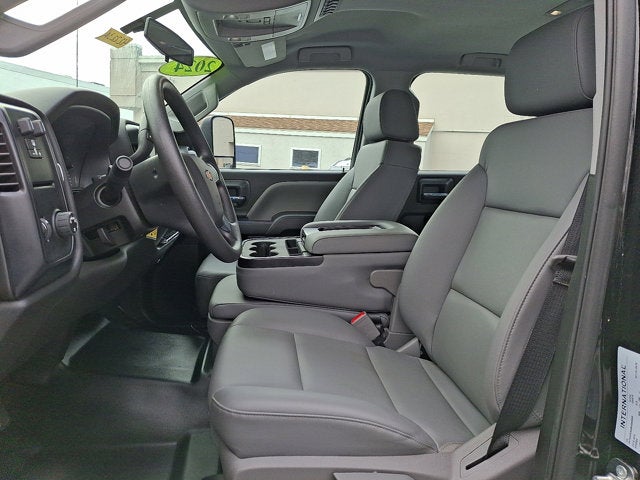

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER

• driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON

• provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp

TIRES, FRONT 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR

• Max Axle Load: 7
• 940 lb.

BATTERY, TOP POST THREADED, BATTERY JUMP START STUD

• (located on battery box)

SPARE TIRE DELETE

• (STD)

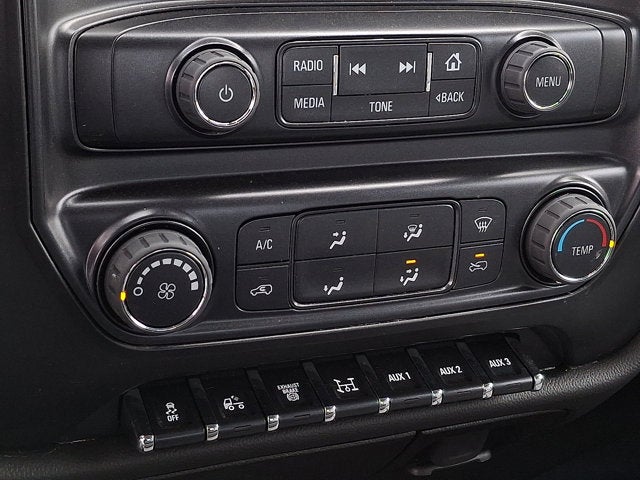

PROVISIONS FOR ELECTRICAL SWITCH BANK

• consists of (6) two position
• latching
• rocker style switch modules with an on/off indicator window. The application of each switch will be defined by the customer/up fitter. Located on Headliner.

REAR AXLE, 4.56 RATIO

• Max road speed: 70 MPH

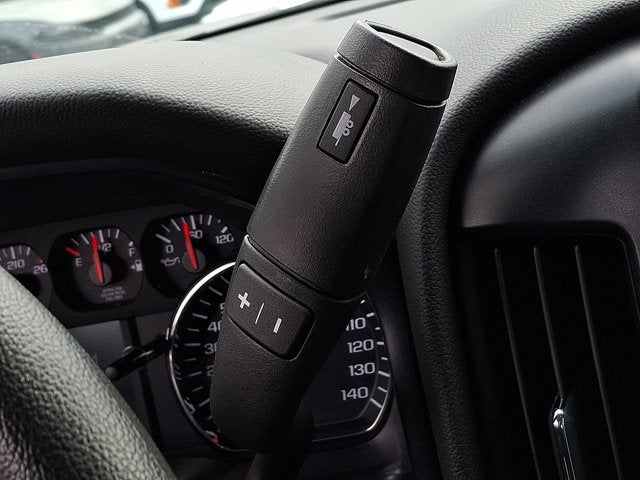

RUGGED DUTY SERVICE TRANSMISSION, AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE, ALLISON, A1750RDS

• ratios 3.10 1ST
• 1.80 2ND
• 1.40 3RD
• 1.00 4TH
• 0.70 5TH
• 0.61 Rugged Duty Series

FRONT SUSPENSION, 7,000 LB. (3,175 KG) MULTI-LEAF, INCLUDES SHOCK ABSORBERS

• (STD)

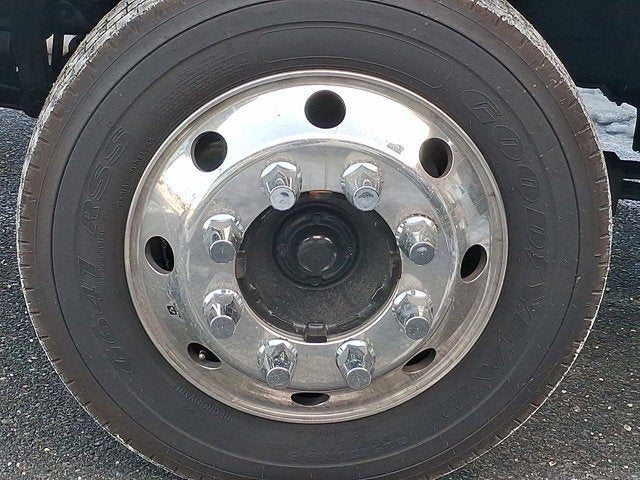

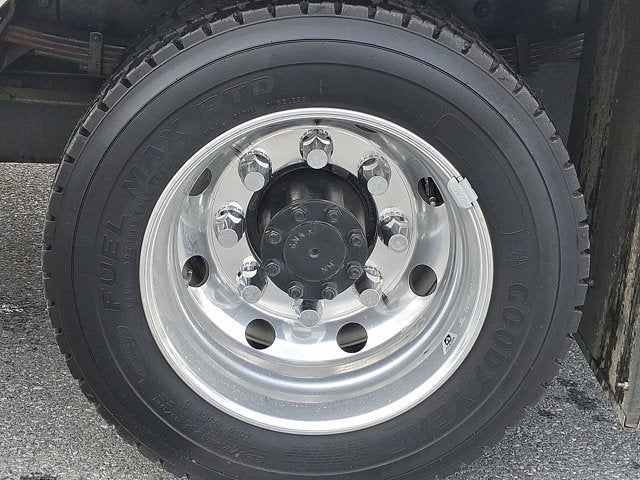

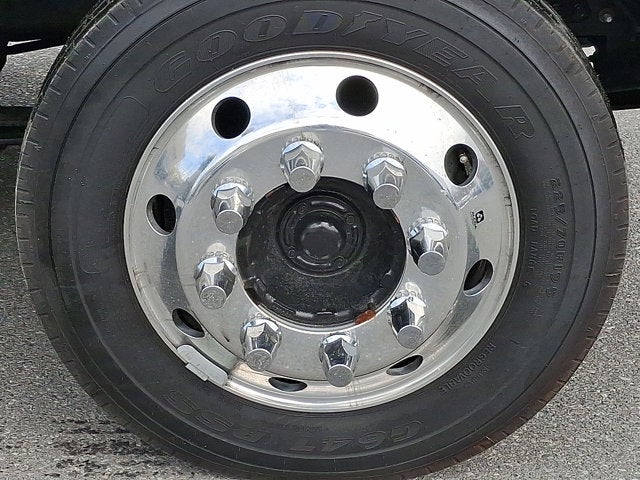

WHEELS, 19.5" X 6.75", 4-ALUMINUM WHEELS, 8-HOLES, HUB PILOTED

• Dura-Bright finish is on the outside of the wheel

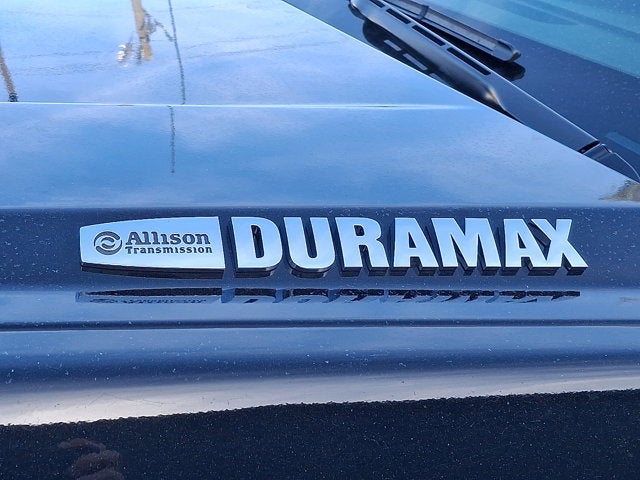

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• 350 hp @ 2500 rpm
• 750 lb.-ft. torque @ 1400 rpm (STD)

• FRONT STABILIZER BAR
• DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS VINYL SEAT TRIM
• BACKUP ALARM (Includes (SFW) SEO Calibration for backup alarm.
• ASSIST STEPS ALUMINUM
• REAR SUSPENSION 15 500 LB. (7 031 KG) MULTI-LEAF VARI-RATE
• EXHAUST SYSTEM RIGHT SIDE EXIT AHEAD OF REAR WHEELS
• REAR AXLE 15 500 LB. (7 031 KG)
• AUDIO SYSTEM 4.2" DIAGONAL COLOR DISPLAY AM/FM stereo with USB port and auxiliary jack (STD)
• DOOR HANDLES OUTSIDE CHROME
• GVWR 19 500 LB. (8845 KG)

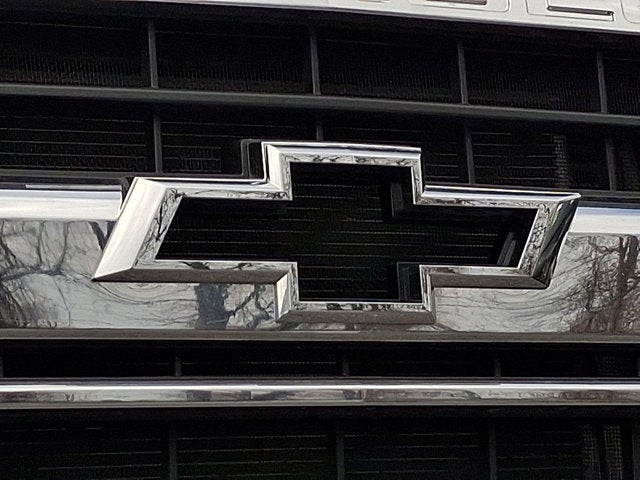

• GRILLE CHROME
• BUMPER FRONT CHROME
• GOVERNOR ELECTRONIC SPEED SENSOR SET TO 75 MPH
• TIRES REAR 225/70R19.5G TRACTION BLACKWALL GOODYEAR Max Axle Load: 15 000 lb.
• POWER TAKE OFF ENGINE CONTROL PROVISIONS Access is available on left-hand and right-hand side
• LICENSE PLATE KIT FRONT
• FUEL TANK FRONT AND REAR 65 GALLON TOTAL
• BACK-UP ALARM CALIBRATION This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
• POWER OUTLET 110-VOLT AC
• REMOTE KEYLESS ENTRY
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
• TIRES FRONT 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR Max Axle Load: 7 940 lb.
• BATTERY TOP POST THREADED BATTERY JUMP START STUD (located on battery box)

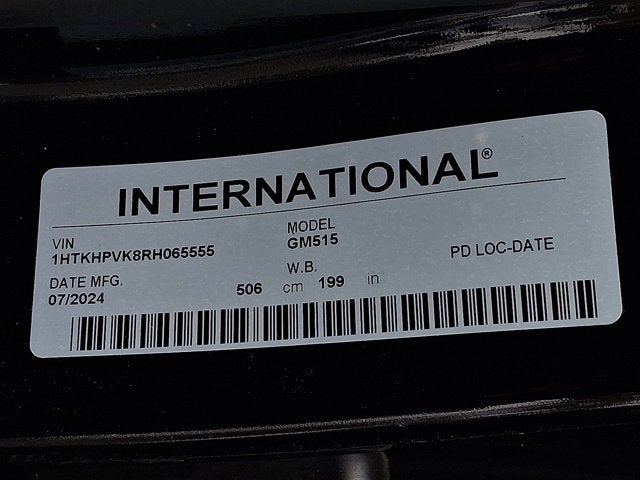

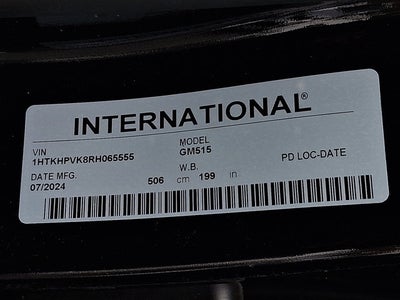

• WHEELBASE 199" (505.5 CM) 84" CA
• SPARE TIRE DELETE (STD)
• ALTERNATOR 220 AMPS
• PROVISIONS FOR ELECTRICAL SWITCH BANK consists of (6) two position latching rocker style switch modules with an on/off indicator window. The application of each switch will be defined by the customer/up fitter. Located on Headliner.
• REAR AXLE 4.56 RATIO Max road speed: 70 MPH
• PAINT SOLID
• RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
• ADDITIONAL FUEL 20 GALLONS
• AXLE LIMITED SLIP DANA SPICER TRUETRAC TORQUE PROPORTIONING LIMITED SLIP

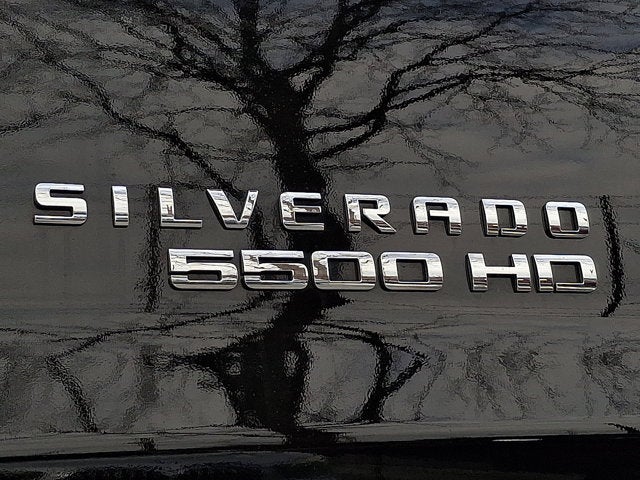

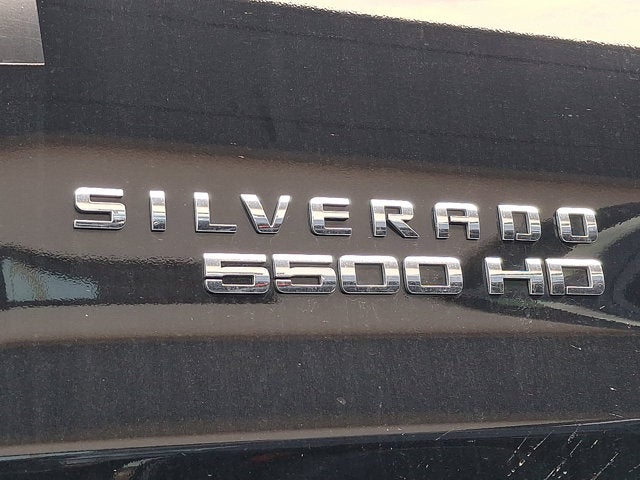

• 5500 HD SERIES
• RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1750RDS ratios 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 Rugged Duty Series
• FRONT SUSPENSION 7 000 LB. (3 175 KG) MULTI-LEAF INCLUDES SHOCK ABSORBERS (STD)
• 35 000 LB. GCWR (15 875 KG)
• WHEELS 19.5" X 6.75" 4-ALUMINUM WHEELS 8-HOLES HUB PILOTED Dura-Bright finish is on the outside of the wheel
• BLACK
• FRONT AXLE 7 000 LB. DANA SPICER D800-N "I"-BEAM NON-DRIVING
• ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2500 rpm 750 lb.-ft. torque @ 1400 rpm (STD)
• Turbocharged
• Rear Wheel Drive
• Power Steering
• ABS
• Tires - Front All-Season
• Tires - Rear All-Season
• Running Boards/Side Steps
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Split Bench Seat
• Vinyl Seats
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Power Windows
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Traction Control
• Daytime Running Lights
• Automatic Headlights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag On/Off Switch

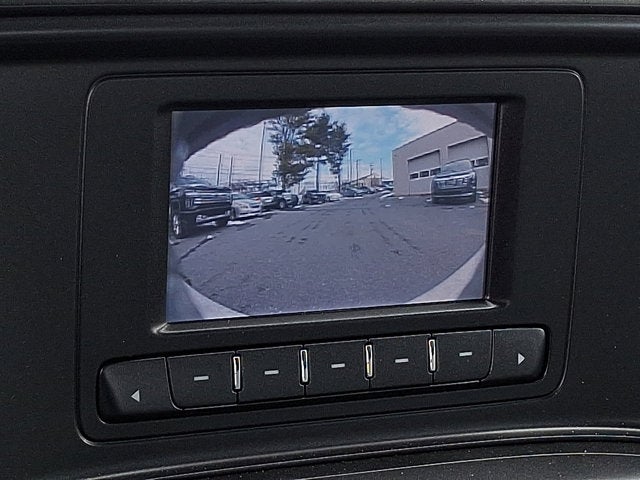

• Back-Up Camera

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.375 x 1.54
• Rear Brake Rotor Diam x Thickness (in): 15.375 x 1.54
• Cooling System
• Total Cooling System Capacity (qts): 48
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 220
• Exterior Dimensions
• Body Length Default Value (ft): 10
• Cab to Axle (in): 84.09
• Cab to End of Frame (in): 133.3
• Frame Width, Rear (in): 34.1
• Front Bumper to Back of Cab (in): 149.48
• Ground to Top of Load Floor (in): 29.4 front/32.1 rear
• Height, Overall (in): 82.89
• Length, Overall (in): 282.8
• Overhang, Front (in): 34.4
• Overhang, Rear w/o bumper (in): 49
• Wheelbase (in): 199
• Width, Max w/o mirrors (in): 92.705
• Frame
• Frame RBM (N/A): 404000 Front/546500 Belly/423500 Rear
• Frame Strength (lbs): 50000
• Frame Thickness (in): 0.3125
• Frame Type: High Strength Low Alloy Steel
• Sect Modulus Rails Only (in³): 8.08 Front/10.93 Belly/8.47 Rear
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 65
• Fuel Tank Location: Front & Rear
• Interior Dimensions
• Front Head Room (in): 42.8
• Front Hip Room (in): 60.75
• Front Leg Room (in): 45.28
• Front Shoulder Room (in): 64.84
• Passenger Capacity: 6
• Second Head Room (in): 40.51
• Second Hip Room (in): 60.24
• Second Leg Room (in): 40.94
• Second Shoulder Room (in): 64.33
• Medium Duty Performance
• Driver Ratio: 0.9
• Max Speed For Gradeability: 70
• Static Loaded Radius (in): 15.2
• Torque : Clutch Engage (ft-lbs)
• Torque Converter: 1.764
• Steering
• Steering Ratio (:1), At Lock: 19.6
• Steering Ratio (:1), On Center: 16.6
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 55.7
• Turning Diameter - Wall to Wall (ft): 57.3
• Summary

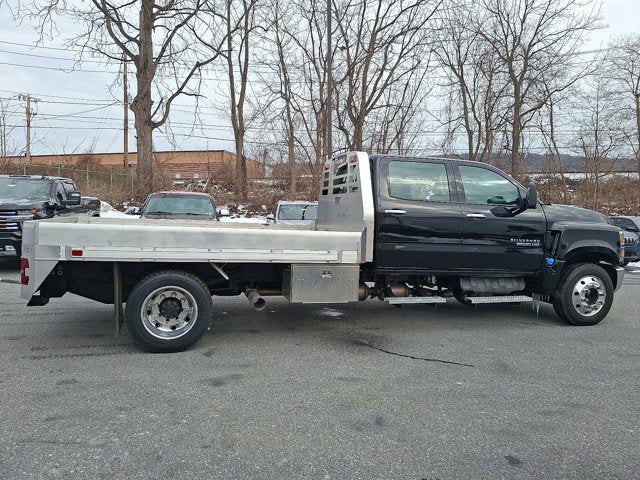

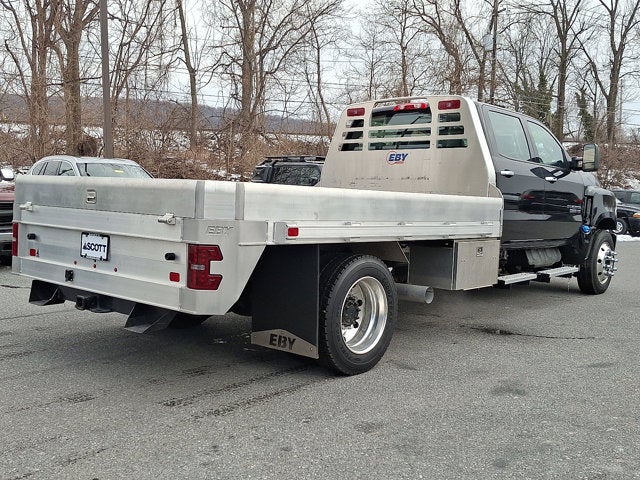

• Body Style: Crew Cab Chassis Cab
• Vehicle Name: Chevrolet Silverado MD
• Suspension
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 15500
• Axle Ratio (:1) - Rear: 4.56
• Axle Type - Front: Dana Spicer I-Beam
• Shock Absorber Diameter - Front (mm): 51
• Spring Capacity - Front (lbs): 7000
• Spring Capacity - Rear (lbs): 15500
• Stabilizer Bar Diameter - Front (in): 1.26
• Suspension Type - Front: Multi-Leaf
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 7940
• Front Tire Order Code: XDK
• Front Tire Size: 225/70R19.5G
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 0
• Rear Tire Capacity (lbs): 15000
• Rear Tire Order Code: YMF
• Rear Tire Size: 225/70R19.5G
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Vehicle
• Axle Ratio - Low Rear (:1): 4.56
• Number of Passenger Doors: 4
• Weight Information
• Curb Weight - Front (lbs): 5178
• Curb Weight - Rear (lbs): 3240
• Gross Axle Wt Rating - Front (lbs): 7000
• Gross Axle Wt Rating - Rear (lbs): 15000
• Gross Combined Wt Rating (lbs): 35000
• Gross Vehicle Weight Rating Cap (lbs): 19500
• Wheels
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 8
• Front Bolt Pattern: 8 Hole 10.83"
• Front Wheel Material: Aluminum
• Front Wheel Size (in): 19.5 x 6.75
• Rear Bolt Pattern: 8 Hole 10.83"
• Rear Wheel Material: Aluminum & Steel
• Rear Wheel Size (in): 19.5 x 6.75
