• 6-speaker audio system (Standard on Crew Cab and Double Cab models.)
• Air conditioning, single-zone
• Assist handle, front passenger on A-pillar
• Audio system, 4.2" diagonal color display, AM/FM stereo with USB port and auxiliary jack with USB ports and auxiliary jack (Dynamic guidelines not available on IO3.) (Not available with (AZ3) 40/20/40 split-bench seat. Dynamic guidelines not available on IO3.)
• Cruise control, electronic with set and resume speed, steering wheel-mounted
• Door locks, power

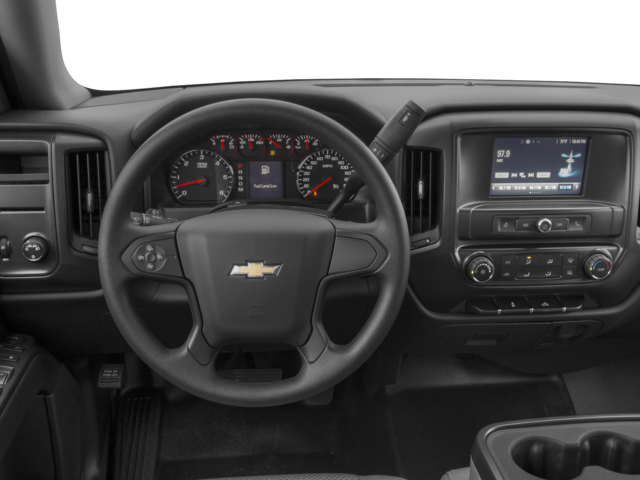

• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl, no floor mats included

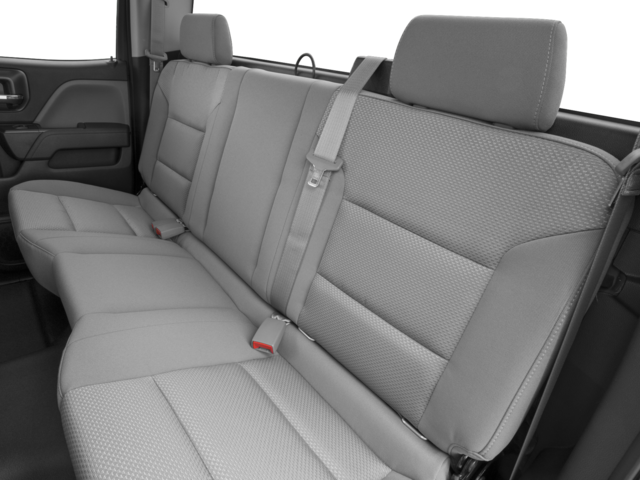

• Seat, rear full-width folding bench, 3-passenger (includes child seat top tether anchor) (Requires Double Cab models.)

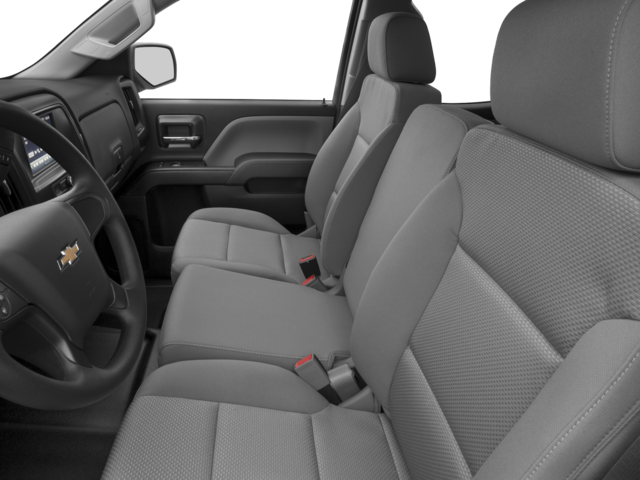

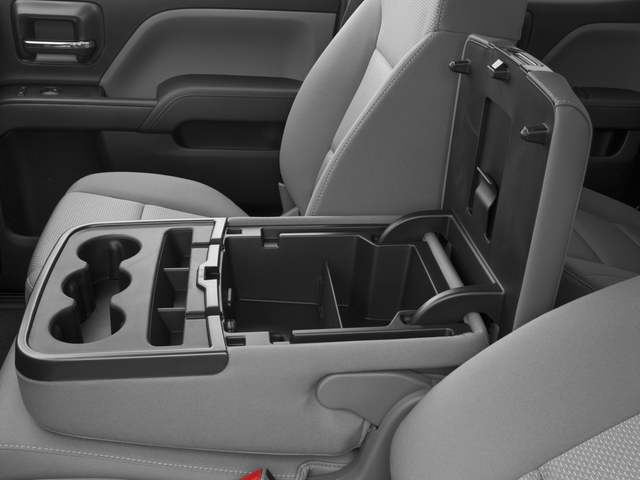

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manual adjustable driver lumbar.
• SiriusXM Satellite Radio, delete
• Steering column, Tilt-Wheel, manual with theft-deterrent locking feature
• Windows, power front and rear with driver express up and down and express down on all other windows (Standard on Crew Cab and Double Cab.)

• Alternator, 150 amps
• Battery, heavy-duty 730 cold-cranking amps/70 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel disc with DURALIFE rotors, 4-wheel antilock
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Pickup box
• Steering, Electric Power Steering (EPS) assist, rack-and-pinion
• Suspension Package, Handling/Trailering
• Transfer case, with floor-mounted shifter (Included with 4WD models only.)

• Airbags, Dual-stage frontal airbags for driver and front passenger, seat-mounted side-impact airbags for driver and front outboard passenger, and head-curtain side-impact airbags for front and rear outboard seating positions; includes Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps with automatic exterior lamp control
• OnStar, delete also deletes driver information center compass
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Tire Pressure Monitoring System (does not apply to spare tire)

TRANSMISSION, 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

BLACK OUT EDITION

• includes (NZQ) 20" x 9" Black-painted aluminum wheels
• (QSS) P275/55R20 all-season
• blackwall tires
• (K6H) Tailgate bowtie delete
• LPO
• (SFZ) Black bowties
• LPO
• (TRB) body-color grille surround
• (HQX) body-color headlamp bezel and (AKO) deep tinted glass

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER MANUAL RECLINE

• with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manual adjustable driver lumbar. (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

ONSTAR WITH 4G LTE

• and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds
• includes 3GB or 3 months OnStar Data Trial (whichever comes first)

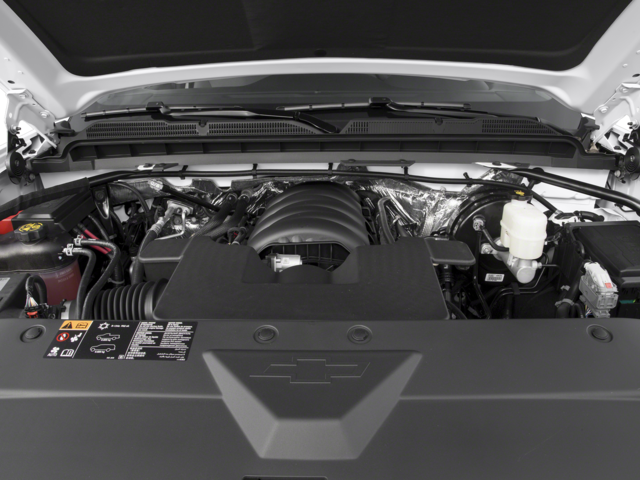

ENGINE, 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION AND VARIABLE VALVE TIMING

• includes aluminum block construction (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm)

• SUSPENSION PACKAGE HIGH PERFORMANCE
• COOLING AUXILIARY EXTERNAL TRANSMISSION OIL COOLER
• TRANSMISSION 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• BLACK OUT EDITION includes (NZQ) 20" x 9" Black-painted aluminum wheels (QSS) P275/55R20 all-season blackwall tires (K6H) Tailgate bowtie delete LPO (SFZ) Black bowties LPO (TRB) body-color grille surround (HQX) body-color headlamp bezel and (AKO) deep tinted glass
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER MANUAL RECLINE with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manual adjustable driver lumbar. (STD)
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• REAR AXLE 3.42 RATIO
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE (includes driver's side spotter mirror) (Black.
• GVWR 7200 LBS. (3266 KG)
• WHEELS 20" X 9" (50.8 CM X 22.9 CM) BLACK-PAINTED ALUMINUM
• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• TIRE SPARE P265/70R17 ALL-SEASON BLACKWALL
• GRILLE SURROUND BODY COLOR
• POWER OUTLET 110-VOLT AC
• OnStar Equipped (subscription required)
• REAR VISION CAMERA WITH DYNAMIC GUIDE LINES
• BLACK
• REMOTE LOCKING TAILGATE
• GLASS DEEP-TINTED
• TAILGATE BOWTIE DELETE
• OnStar Equipped (subscription required)
• REMOTE KEYLESS ENTRY WITH 2 TRANSMITTERS Includes (A91) remote locking tailgate.)
• ENGINE 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT DIRECT INJECTION AND VARIABLE VALVE TIMING includes aluminum block construction (355 hp [265 kW] @ 5600 rpm 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm)
• DARK ASH WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM
• LPO BLACK BOW-TIE EMBLEMS FRONT AND REAR
• PAINT SOLID
• HEADLAMP BEZELS BODY-COLOR
• LICENSE PLATE KIT FRONT
• WT CONVENIENCE PACKAGE All cabs include (AKO) tinted windows (KI4) 110V outlet (AQQ) Remote Keyless Entry (A91) remote locking tailgate (UVC) Rear Vision Camera and (DL8) power mirrors.

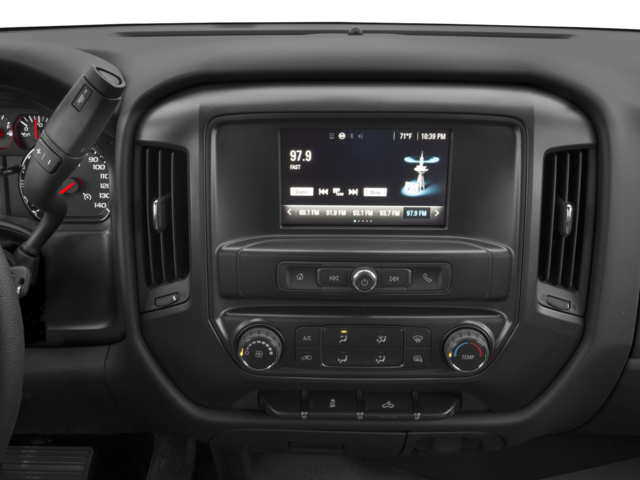

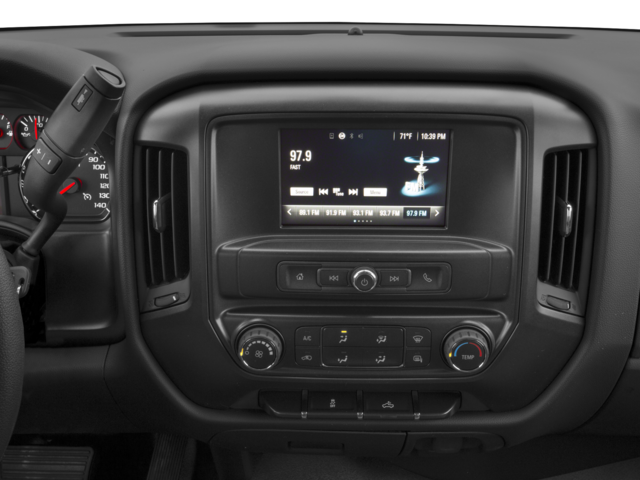

• AUDIO SYSTEM CHEVROLET MYLINK RADIO WITH 7" DIAGONAL COLOR TOUCH-SCREEN AM/FM STEREO with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones; featuring Android Auto and Apple CarPlay capability for compatible phone (Includes (UQ3) 6-speaker audio system (UE1) OnStar (VV4) OnStar 4G LTE Wi-Fi Hotspot.)
• TRAILERING PACKAGE includes trailer hitch 7-pin and 4-pin connectors Includes (G80) locking rear differential.
• TIRES P275/55R20 ALL-TERRAIN BLACKWALL
• Four Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Conventional Spare Tire
• Tow Hooks
• Daytime Running Lights
• HID headlights
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Split Bench Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Power Windows
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Telematics
• Requires Subscription
• Tire Pressure Monitor

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 21.10
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 61.0
• Tailgate Width (in): 62.2
• Cooling System
• Total Cooling System Capacity (qts): 15.6
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 150
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 41.50
• Front Bumper to Back of Cab (in): 141.37
• Ground Clearance, Front (in): 8.87
• Ground Clearance, Rear (in): 8.87
• Ground to Top of Load Floor (in): 34.5
• Height, Overall (in): 73.90
• Length, Overall w/o rear bumper (in): 230.03
• Wheelbase (in): 143.5
• Width, Max w/o mirrors (in): 80.0
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Interior Dimensions
• Front Head Room (in): 42.80
• Front Hip Room (in): 60.73
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 65.93
• Passenger Capacity: 6
• Second Head Room (in): 38.67
• Second Hip Room (in): 60.23
• Second Leg Room (in): 34.63
• Second Shoulder Room (in): 65.80
• Mileage
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 22
• Fuel Economy Est-Combined (MPG): 18
• Steering
• Steering Ratio (:1), On Center: 16.3
• Steering Type: Electric Rack & Pinion
• Turning Diameter - Curb to Curb (ft): 46.9
• Summary
• Body Code: E63
• Body Style: Double Cab Pickup

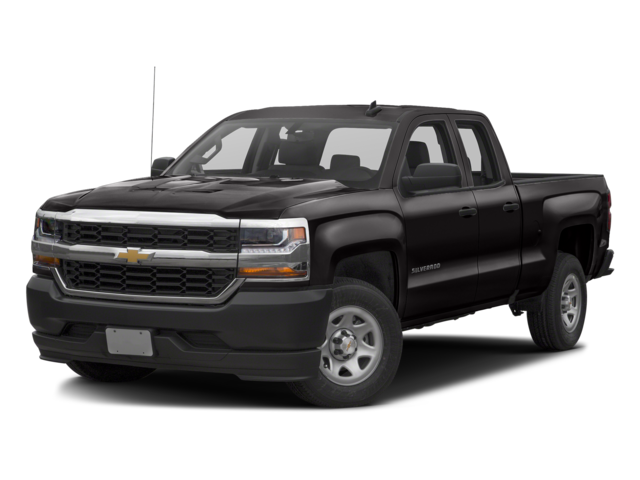

• Vehicle Name: Chevrolet Silverado 1500
• Suspension
• Axle Capacity - Front (lbs): 3950
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 35
• Spring Capacity - Front (lbs): 3950
• Spring Capacity - Rear (lbs): 3950
• Stabilizer Bar Diameter - Front (in): 1.35
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Tires
• Front Tire Order Code: RC7
• Front Tire Size: P275/55R20
• Rear Tire Order Code: RC7
• Rear Tire Size: P275/55R20
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: RC4
• Spare Tire Size: P265/70R17
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Maximum Trailering Capacity (lbs): 10900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 920
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9200
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3950
• Gross Axle Wt Rating - Rear (lbs): 3950
• Gross Combined Wt Rating (lbs): 12800
• Gross Vehicle Weight Rating Cap (lbs): 7200
• Wheels
• Front Wheel Material: Aluminum
• Front Wheel Size (in): 20 x 9.0
• Rear Wheel Material: Aluminum
• Rear Wheel Size (in): 20 x 9.0
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 17 x
