• Accents, interior Titanium Nova Silver-colored air outlets and center control stack with chrome door handle bezels, uplevel instrument cluster bezel, front upper door speaker bezel and air vent sliders
• Air conditioning, single-zone manual
• Assist handle, front passenger
• Audio system feature, uplevel speaker system

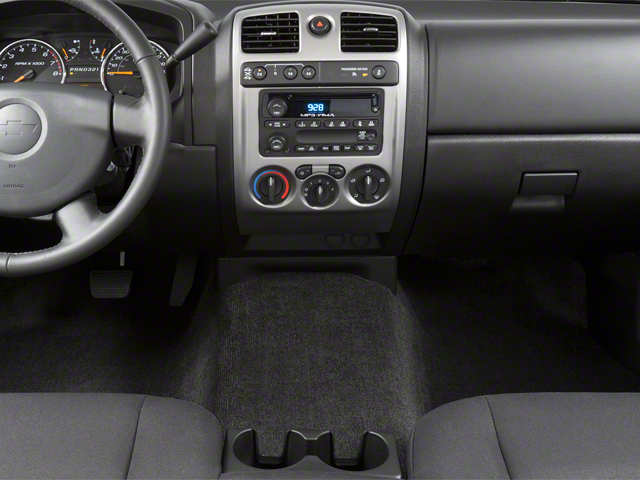

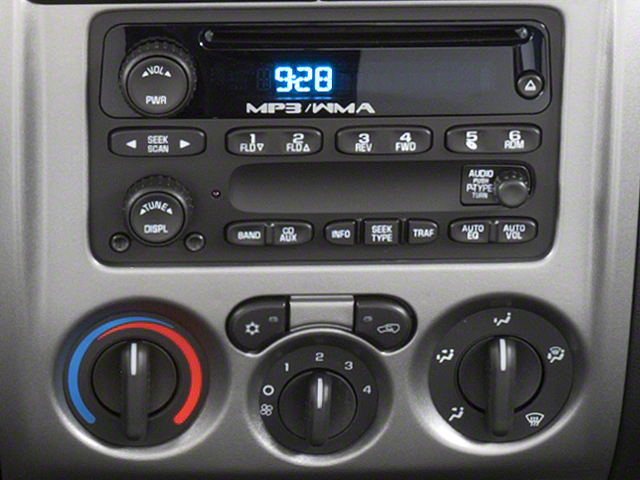

• Audio system, AM/FM stereo with seek-and-scan and digital clock (Included and only available with (Y5D) Crew Cab Value Option Package)
• Bluetooth® for Phone, personal cell phone connectivity to vehicle audio system (Deleted when (UE0) OnStar delete is ordered.)
• Coat hooks, driver- and passenger-side rear
• Cruise control
• Door locks, manual
• Door trim integral armrests and driver- and front passenger-side map pockets with cloth inserts
• Floor covering, Ebony carpeting
• Floor mats, rubberized-vinyl front (Requires (B30) Ebony carpeted floor covering)
• Floor mats, rubberized-vinyl rear (Requires (B30) Ebony carpeted floor covering.)
• Mirror, inside rearview manual day/night
• OnStar Turn-by-Turn Navigation (Deleted when (UE0) OnStar delete is ordered.)
• Power outlets, 2 auxiliary with covers, 12-volt

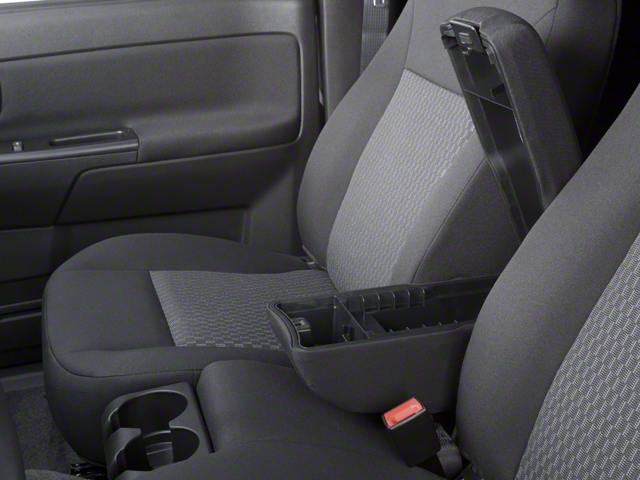

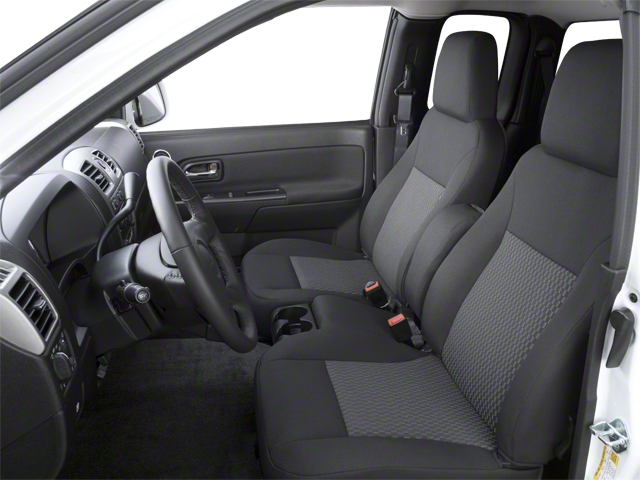

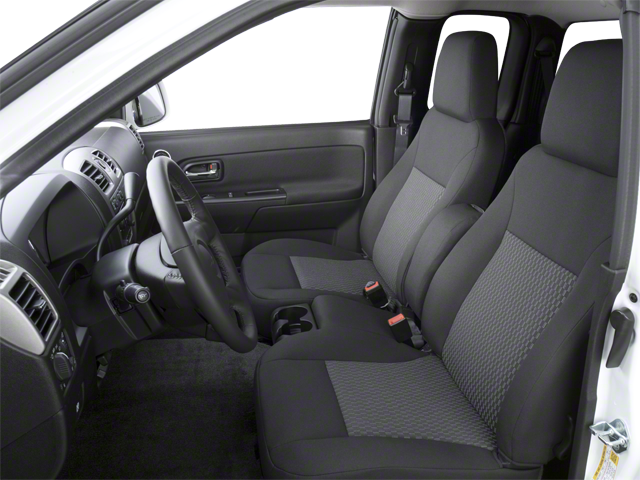

• Seats, front 60/40 split-bench
• Steering column, Tilt-Wheel

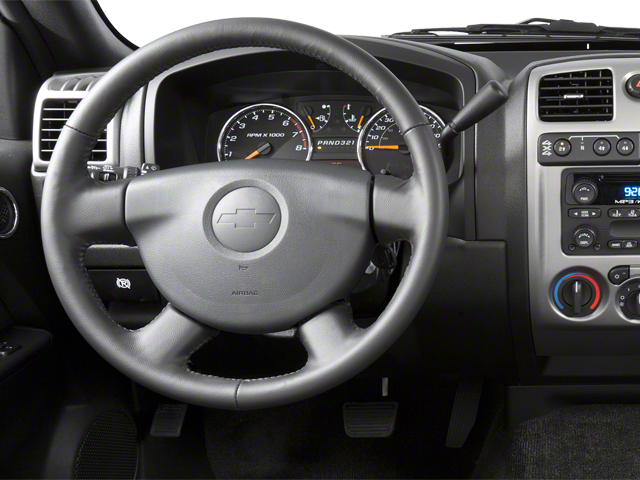

• Steering wheel, leather-wrapped
• Stolen Vehicle Assistance (Deleted when (UE0) OnStar delete is ordered.)
• Theft-deterrent system, vehicle, PASSlock
• Visors, driver and front passenger, padded with cloth includes front passenger vanity mirror
• Warning tones headlamp on, key-in-ignition, driver safety belt unfasten and turn signal on

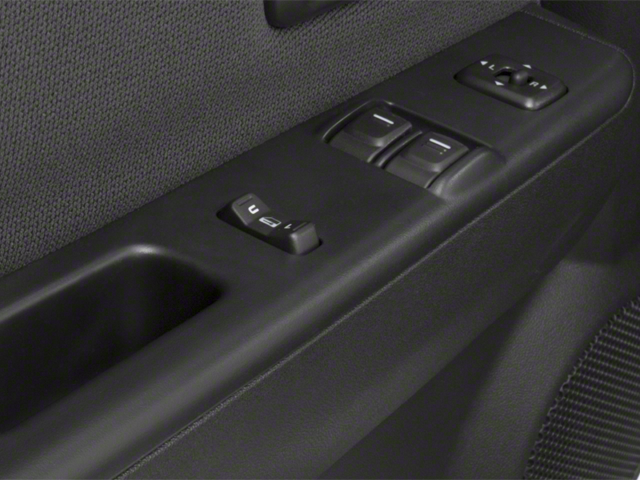

• Windows, manual driver and front passenger

• Alternator, 125 amps
• Battery, heavy-duty 590 cold-cranking amps, maintenance-free with rundown protection
• Brakes, 4-wheel antilock, front disc/rear drum
• Four wheel drive
• Front underbody shield (4x4 models only)
• Pickup box, Fleetside, all-welded steel with double wall construction and corrosion protection with 4 cargo tie-downs
• Recovery hooks, 2 front, frame-mounted (4x4 models only)
• Steering, power, rack-and-pinion
• Suspension Package, Heavy-Duty
• Suspension, front, torsion bar and stabilizer bar (4X4 models only)
• Suspension, rear semi-floating axle with 2-stage multi-leaf springs
• Transfer case, Insta-Trac, electronic shift with dash-mounted controls (4x4 models only.)

• Air bags, frontal, driver and right-front passenger with Passenger Sensing System (A note about child safety: Always use safety belts and the correct child restraint for your child's age and size. Even with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See your vehicle Owner's Handbook for more information.)
• Air bags, head curtain side-impact, driver and right-front passenger, first and second row outboard passengers (Head Curtain Side Air Bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraint for your child's age and size, even with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual for more safety information.)
• Automatic Crash Response (Deleted when (UE0) OnStar delete is ordered.)
• Daytime Running Lamps with automatic exterior lamp control
• OnStar Equipped (subscription required)
• Safety belts, 3-point, driver and right-front passenger, adjustable (center front position lap belt with bench seat only)
• StabiliTrak, stability control system with Traction Control
• Tire Pressure Monitor

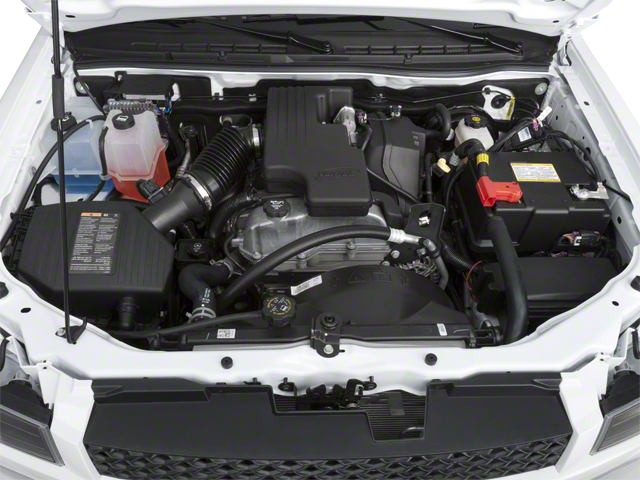

ENGINE, 2.9L DOHC 4-CYLINDER SFI

• (185 hp [137.9 kW] @ 5600 rpm)
• 190 lb-ft [263.2 Nm] @ 2800 rpm) (STD)

EBONY, DELUXE CLOTH

• includes manual recliners with integral outboard head restraints

AUDIO SYSTEM, AM/FM STEREO

• with seek-and-scan and digital clock (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

SEATS, FRONT 60/40 SPLIT-BENCH

• (STD)

TIRE, COMPACT SPARE

• (STD)

TIRES, P235/75R16 ALL-SEASON, BLACKWALL

• (STD)

• ENGINE 2.9L DOHC 4-CYLINDER SFI (185 hp [137.9 kW] @ 5600 rpm) 190 lb-ft [263.2 Nm] @ 2800 rpm) (STD)
• DIFFERENTIAL AUTOMATIC LOCKING REAR
• EBONY DELUXE CLOTH includes manual recliners with integral outboard head restraints
• AUDIO SYSTEM AM/FM STEREO with seek-and-scan and digital clock (STD)
• TRANSMISSION 4-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED WITH OVERDRIVE
• REAR AXLE 3.73 RATIO
• WORK TRUCK PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• SEATS FRONT 60/40 SPLIT-BENCH (STD)
• GLASS SOLAR-RAY DEEP-TINTED
• TIRE COMPACT SPARE (STD)
• SUMMIT WHITE
• TIRES P235/75R16 ALL-SEASON BLACKWALL (STD)
• Four Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• Front Disc/Rear Drum Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Temporary Spare Tire
• Fog Lamps
• Intermittent Wipers
• Bed Liner
• AM/FM Stereo
• Bluetooth® Connection
• Split Bench Seat

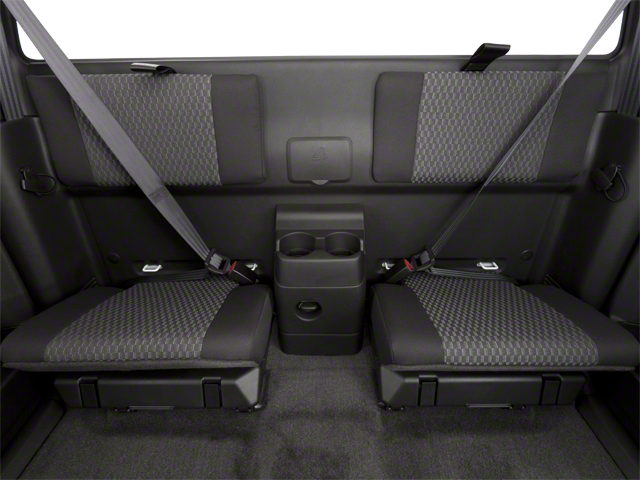

• Rear Bench Seat
• Floor Mats
• Floor Mats
• Leather Steering Wheel
• Adjustable Steering Wheel
• Immobilizer
• Telematics
• Requires Subscription
• Cruise Control
• Telematics
• Navigation from Telematics
• Requires Subscription
• A/C
• Power Outlet
• Passenger Vanity Mirror
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Front Head Air Bag
• Rear Head Air Bag
• Telematics
• Requires Subscription
• Telematics
• Navigation from Telematics
• Requires Subscription
• Tire Pressure Monitor

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Drum - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.2 x 1.6
• Rear Drum Diam x Width (in): 11.6 x 2.5
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 18.6
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 44.0
• Tailgate Width (in): 52.4
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 125
• Emissions
• EPA Greenhouse Gas Score: 4
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 34.2
• Front Bumper to Back of Cab (in): 125.6
• Ground Clearance, Front (in): 10.2
• Ground Clearance, Rear (in): 10.2
• Ground to Top of Load Floor (in): 30.1
• Height, Overall (in): 67.6
• Length, Overall w/o rear bumper (in): 207.1
• Overhang, Front (in): 33.9
• Wheelbase (in): 126.0
• Width, Max w/o mirrors (in): 68.6
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 19
• Fuel Tank Location: Inboard LH Frame Rail
• Interior Dimensions
• Front Head Room (in): 39.3
• Front Hip Room (in): 53.3
• Front Leg Room (in): 42.2
• Front Shoulder Room (in): 57.1
• Passenger Capacity: 6
• Second Head Room (in): 39.3
• Second Hip Room (in): 57.6
• Second Leg Room (in): 23.1
• Second Shoulder Room (in): 57.2
• Mileage
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 23
• Fuel Economy Est-Combined (MPG): 20
• Steering
• Steering Ratio (:1), At Lock: 3.2
• Steering Ratio (:1), On Center: 18.3
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 44.3
• Summary

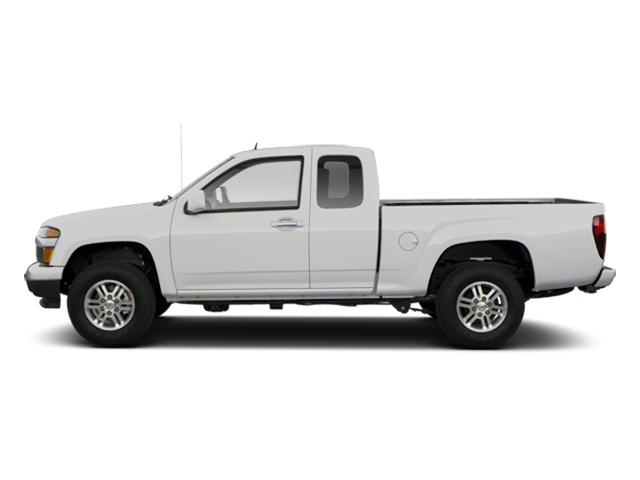

• Body Code: E63
• Body Style: Extended Cab
• Vehicle Name: Chevrolet Colorado
• Suspension
• Axle Capacity - Front (lbs): 2850
• Axle Capacity - Rear (lbs): 2900
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Shock Absorber Diameter - Front (mm): 30
• Shock Absorber Diameter - Rear (mm): 30
• Spring Capacity - Front (lbs): 2850
• Spring Capacity - Rear (lbs): 2900
• Stabilizer Bar Diameter - Front (in): 1.10
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 1763
• Front Tire Order Code: QNF
• Front Tire Size: P235/75R16
• Rear Tire Capacity (lbs): 1763
• Rear Tire Order Code: QNF
• Rear Tire Size: P235/75R16
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Capacity (lbs): 1763
• Spare Tire Order Code: ZCY
• Spare Tire Size: Compact
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 290
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 435
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2900
• Weight Information
• Curb Weight - Front (lbs): 2238
• Curb Weight - Rear (lbs): 1640
• Gross Axle Wt Rating - Front (lbs): 2850
• Gross Axle Wt Rating - Rear (lbs): 2896
• Gross Combined Wt Rating (lbs): 7000
• Gross Vehicle Weight Rating Cap (lbs): 5300
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 x 6
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 x 6
• Spare Wheel Material: Steel
• Spare Wheel Size (in): Compact
